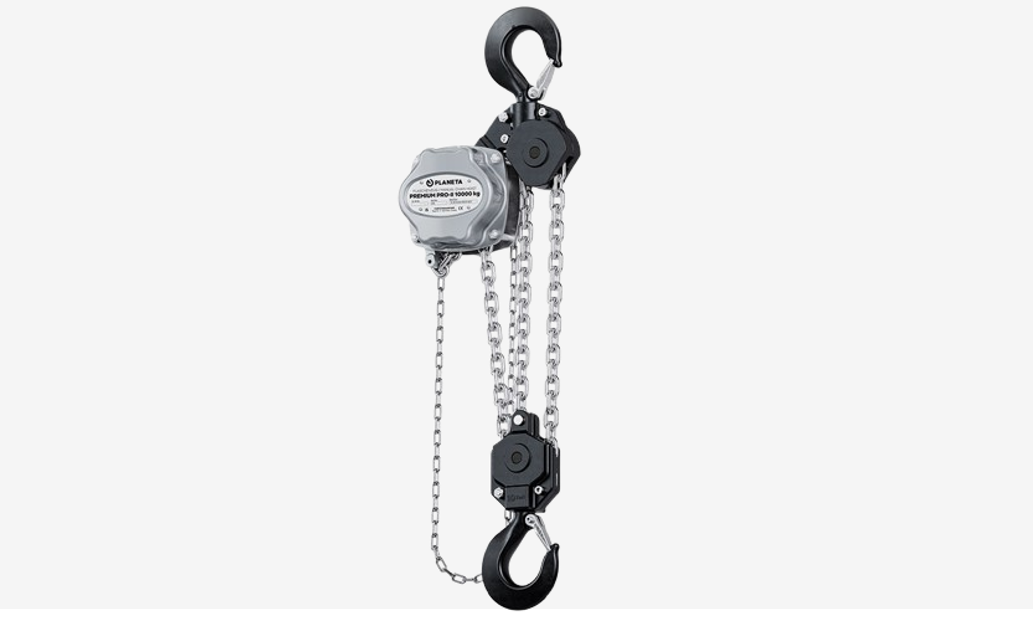

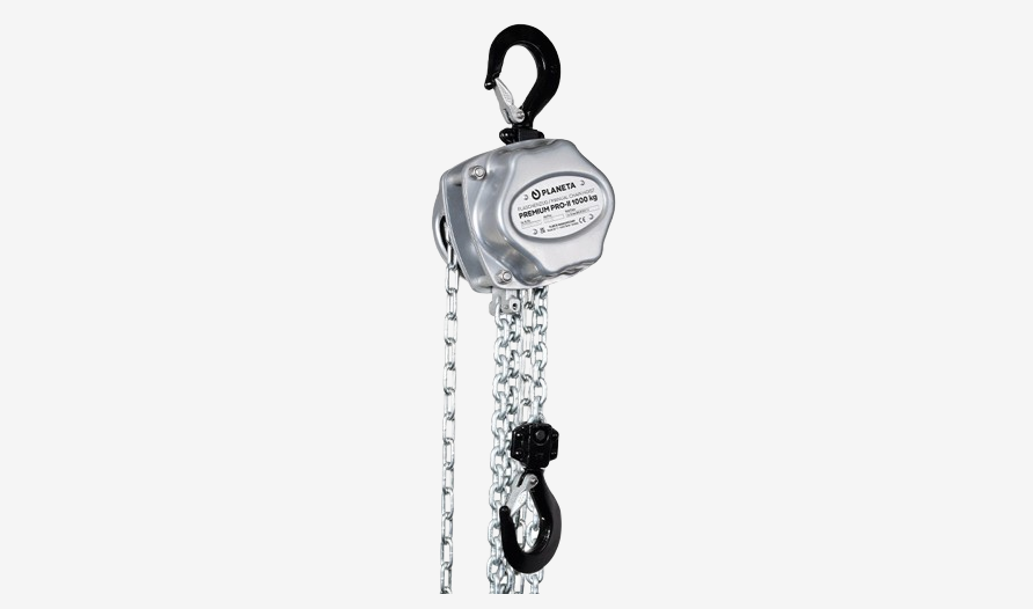

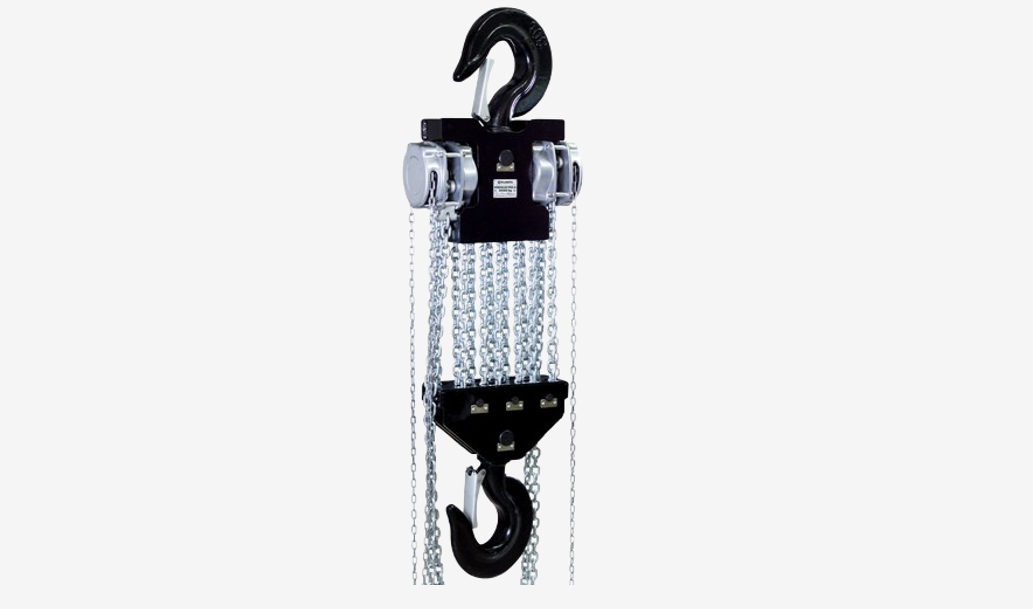

Manual chain hoist PREMIUM PRO
The PREMIUM-PRO manual chain hoist is an advanced version of the well-established PREMIUM series. It is built using the latest technology, resulting in a much lighter and more compact design, which makes it easier to handle. Despite being lighter, it offers improved working stability thanks to its clever construction. The PLANETA-PREMIUM PRO product is of high quality and comes with chrome-plated housing for corrosion protection and overload protection as standard.
Features:
- Capacity from 250 kg to 30,000 kg
- Compact and lightweight
- Standard overload protection (over 500 kg)
- Galvanised load chain acc. DIN EN 818-7-T
- Ball bearing mounted sprocket shaft
- Cast hook clips
- Up to 3,000 kg in a single strand
Options:
- Short model as a combination of chain hoist PREMIUM PRO and trolley
- Chain bag
- Also available with GL (Germanischer Lloyd) certification! For shipyards, ships and the chemical industry.
Downloads:

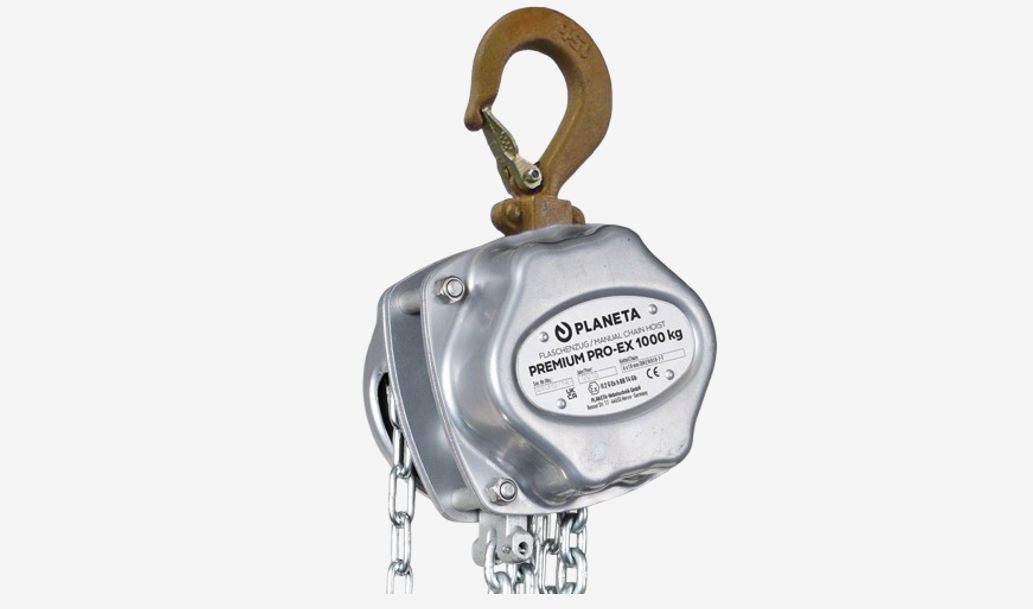

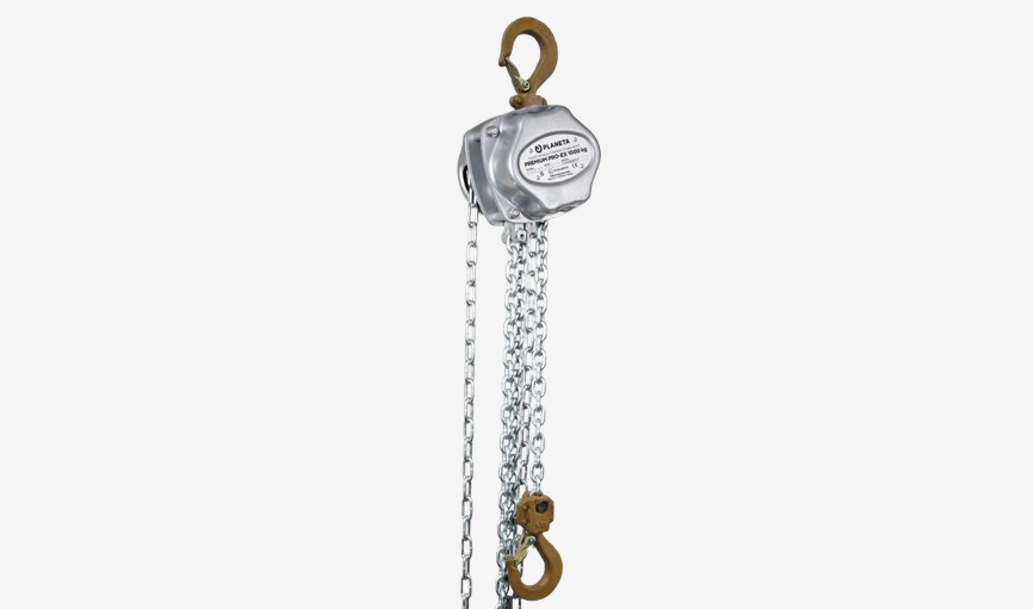

Manual Chain Hoist PREMIUM PRO-EX (Explosion Proof)
All around galvanization and chromatation
Mud and dirt cannot harm this hoist! This protection begins with selflocking galvanized castle nuts, goes over bronze wheels and rustfree chains and ends with fully chromated housing parts. Overload protection in 500 kg capacity hoist and bigger, supplied with ATEX-Certificate!
Features:
- Capacity from 250 kg to 10.000 kg
- High-quality product from PLANETA
- Standard lift 3 m, load chain acc. DIN EN 818-7-T, rustfree, up to 3.000 kg in a single strand
- Safety brake with two pawls
- High quality spur gear
- Swivelling top and bottom hook with cast hook clips
- Galvanised or chromated on all sides
- Standard overload protection (over 500 kg)
- Versions Basic, Medium and High
- Includes explosion protection in accordance with ATEX directives.
Three explosion classes are specified. We offer the versions Basic, Medium and High. Please contact us for more detailed information.
Downloads:
